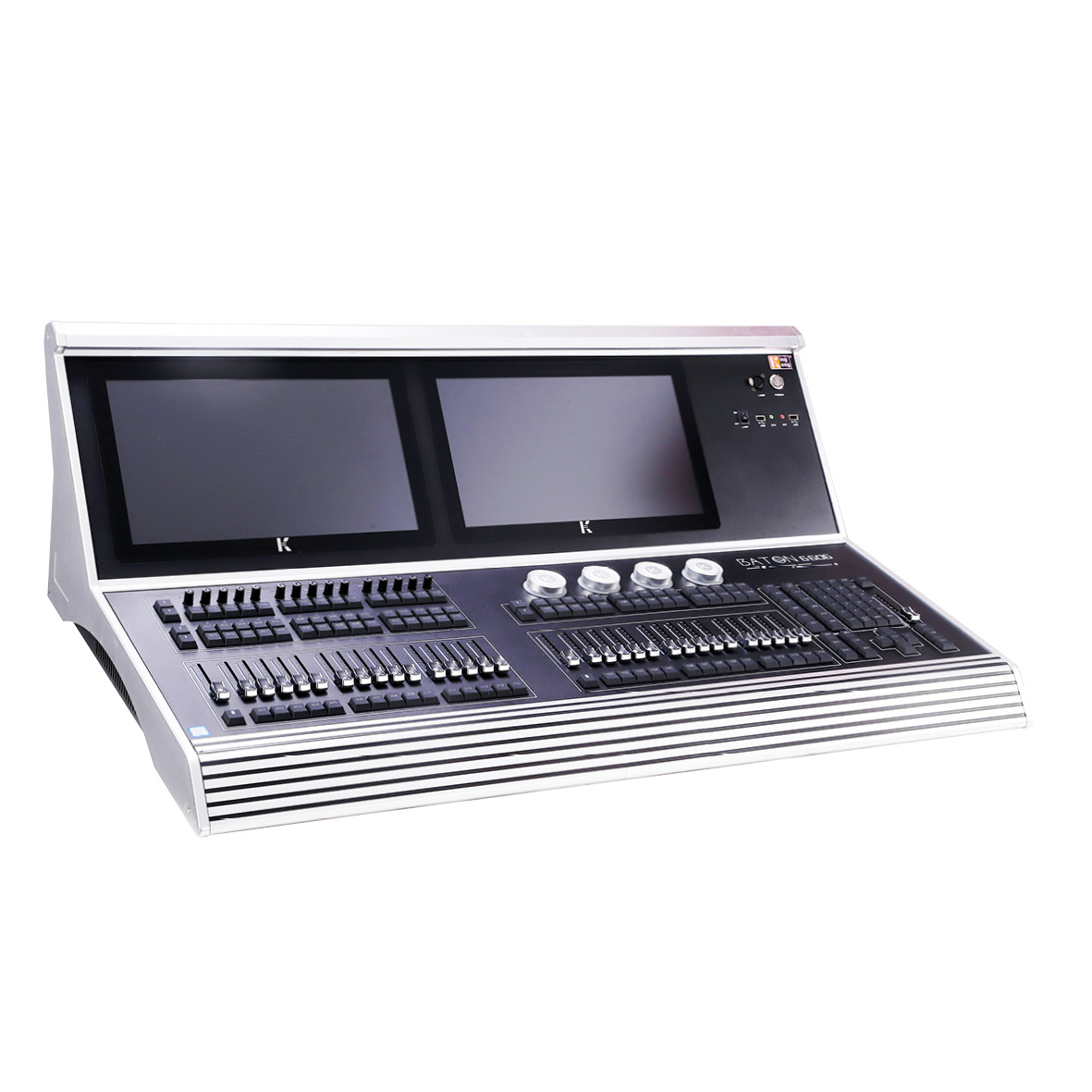

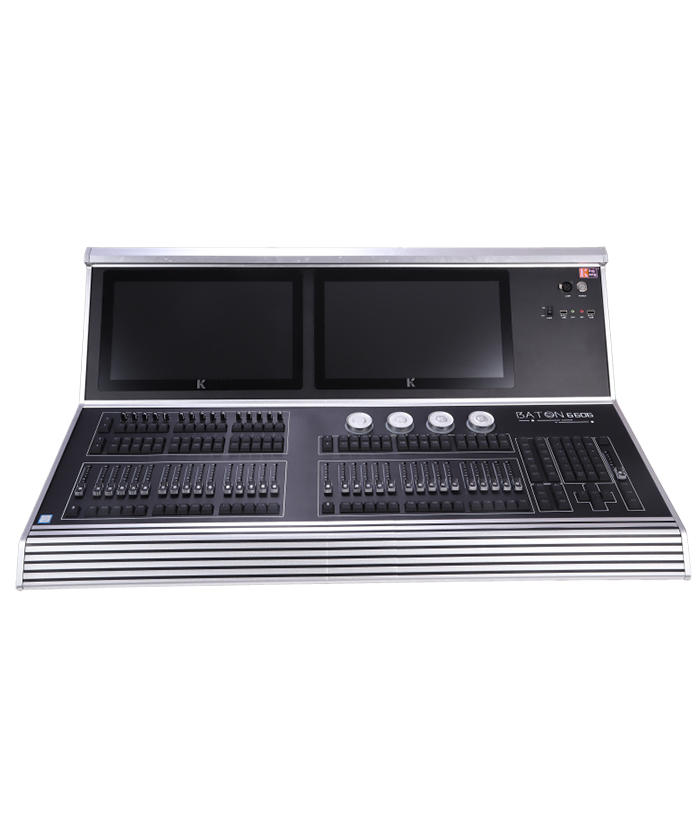

BATON-6606
BATON-6606The operating system is customized and developed based on linux
16 DMX512 physical output ports, which can be extended to 32 DMX outputs
2 capacitive touch screens larger than 15.6 inch
Support switching between multiple languages
6000 fixtures and 600 fixture groups
3000 palette, which can be classified and stored
2700 playbacks and 400 programs
30 replay pushers, which can run 65 replay scenes at the same time
Fader can be customized to set background light display
252 built-in commonly used fixed graphics, 31 kinds of curve effects
6 fan-shaped modes
The special dialog box quickly adjusts the color
Vector bitmap function to simulate site layout and discharge
Customize zoom and arrange function windows, and save the view
15 level knobs
3 USB3.0 interfaces
1 working light interface
Bring your own LED strip lighting, and you can customize the color adjustment
2 audio input/output ports
Built-in UPS for power-off protection
1 master control push rod and 1 AB push rod
Built-in music player
Support graffiti handwriting or custom naming
Support udp, rs232 and dmx512 to communicate with central control
1 MIDI time code input interface
Support wired ART-Net and wireless ART-Net, which can be controlled by mobile phone or IPAD remotely
Online field control of two control stations can be realized
4 attribute coding wheels
Control desk data protection, automatic file backup, custom setting of control desk password and use time
Virtual numeric keyboard supports multi-language switching
Support paragraph arithmetic
Pixel mapping
Rated voltage: AC100V~240V,50/60Hz
